Stiletto Trident

SPECS:

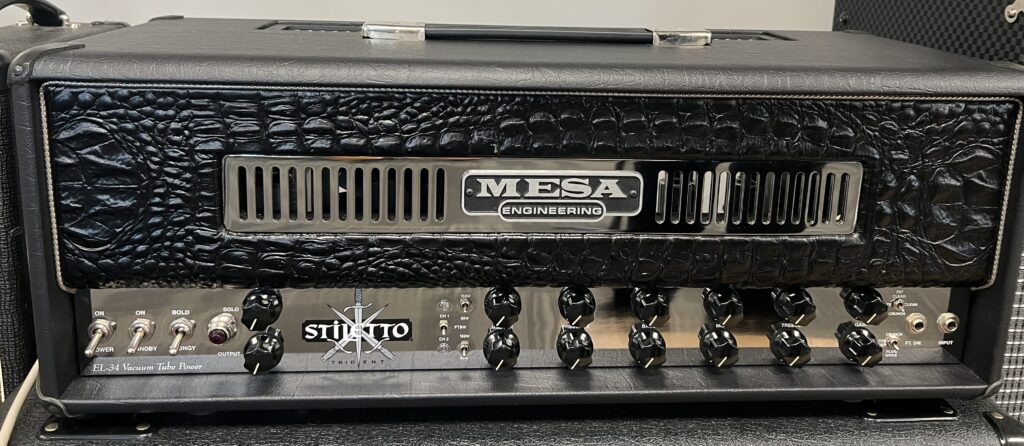

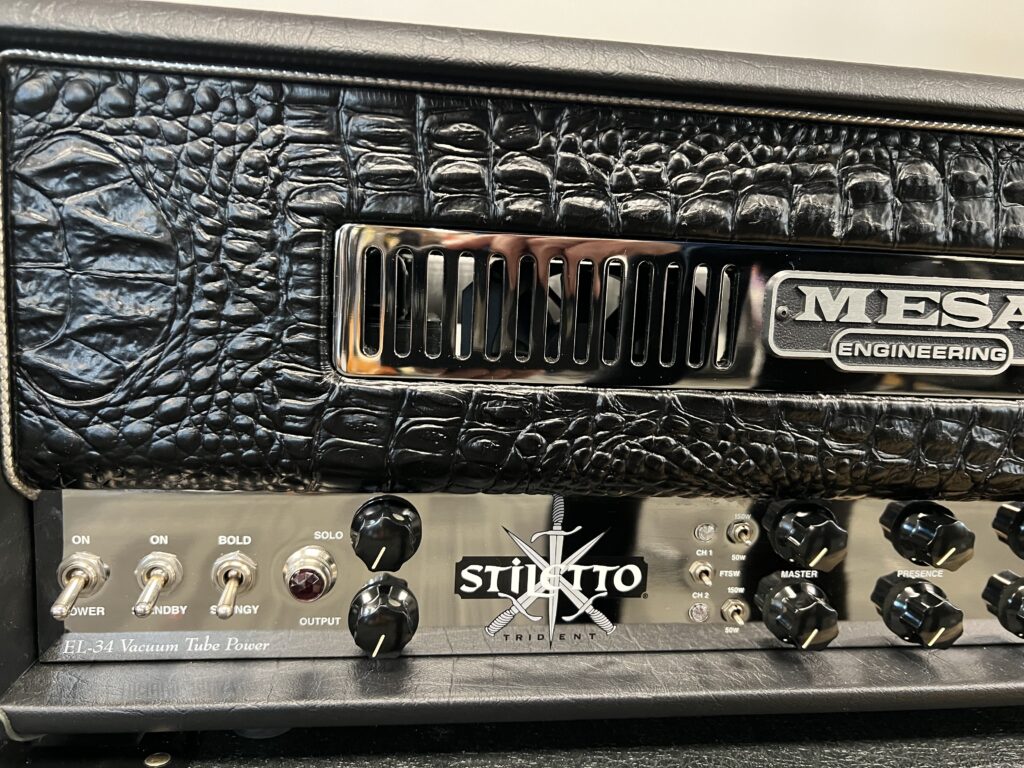

Front Panel

• Switches: Power, standby, spongy/bold

•  Solo control- used w/ft. Switch, allow an overall boost for soloing.

• Output control- overall output   volume

•  Spongy control – like an internal Variac ,

         reducing internal voltages for a

         vintage feel and sound.

• Channel selector switch.

• Wattage selector – (50w/150w)

         Separate switch on each channel

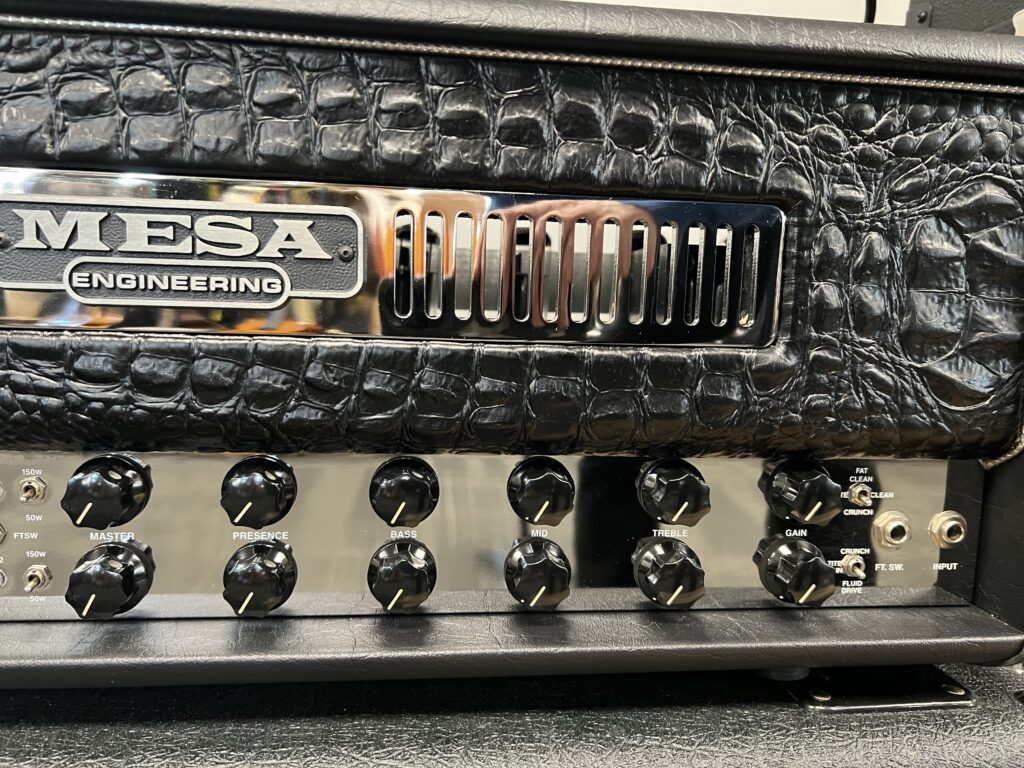

•  Master, presence, bass, mid, treble

         controls on ea. channel.

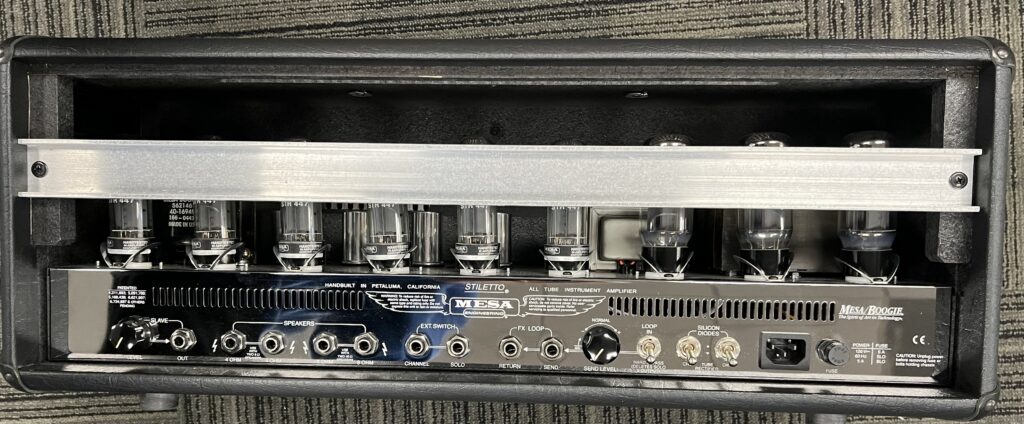

Rear Panel:

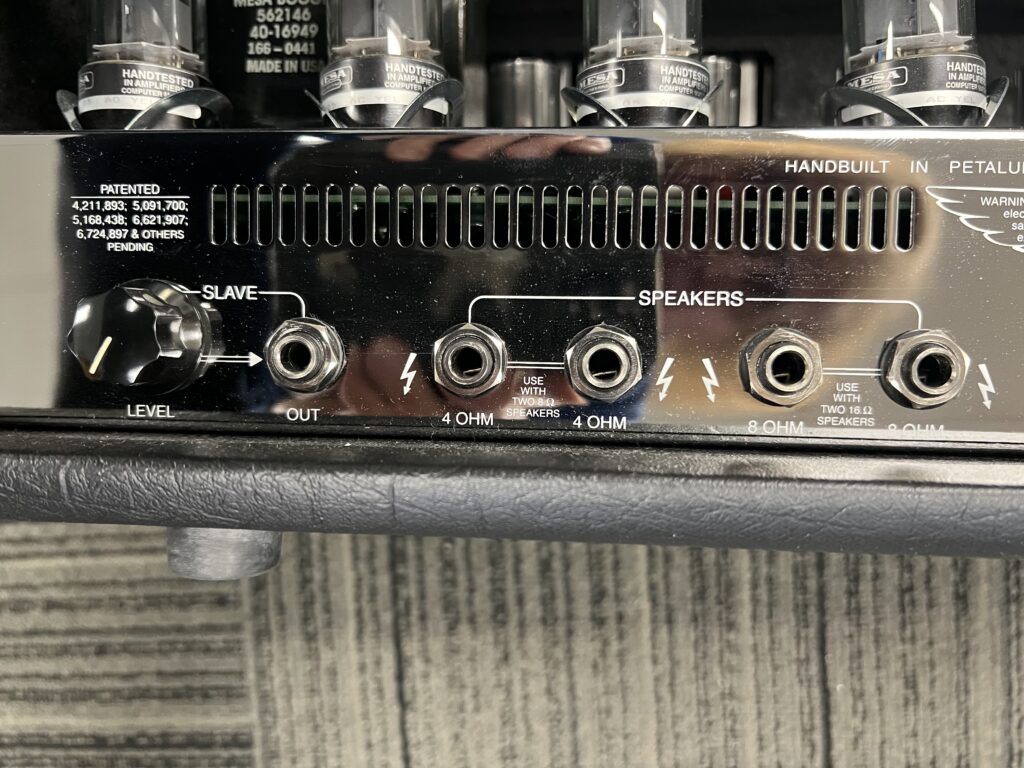

• Speaker outputs: 2 – 4ohm,  2- 8 ohm

• Slave output with level control

• Ext. ft. Switch input channel, solo

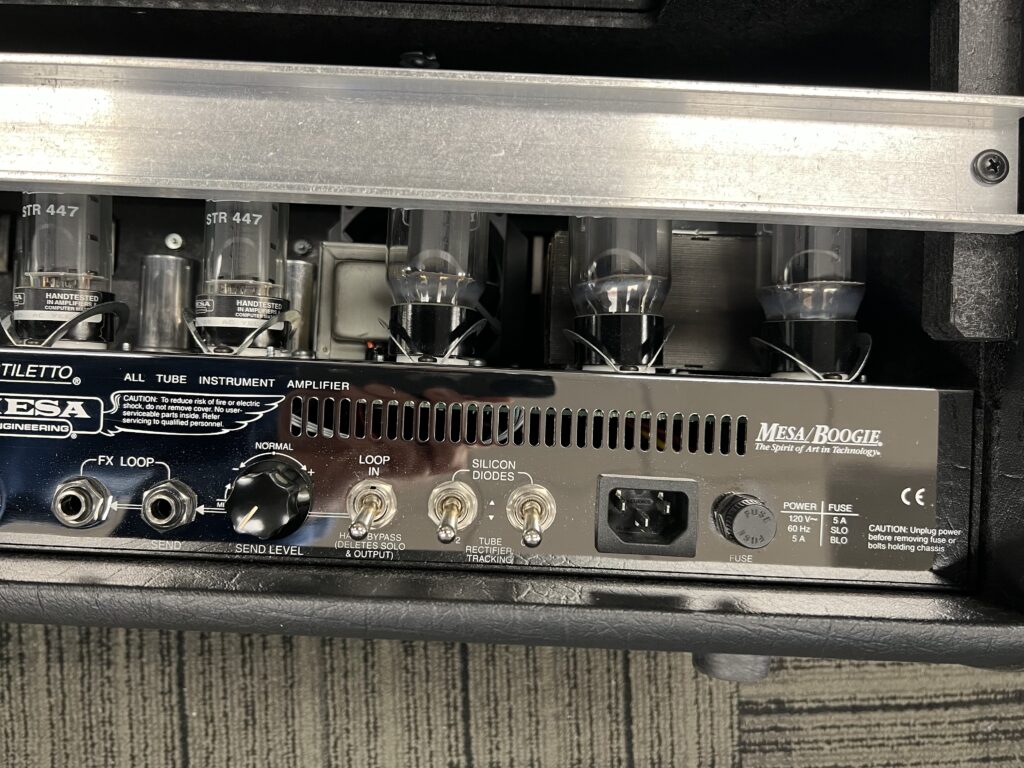

• FX LOOP send + return with send level

          control

• Extension ft. switch jacks for channel and solo mode

• Individual Silicone diodes switch for channel 1 and channel 2

     6 Mesa STR447 tubes

      3 5U4gb rectifier select diodes/

             tubes tracking

              Diode – keeps bass freq. tight

                  and track better at high gain

                  settings

          Tube tracking – better choice for

            single note soloing

      5 preamp tubes
